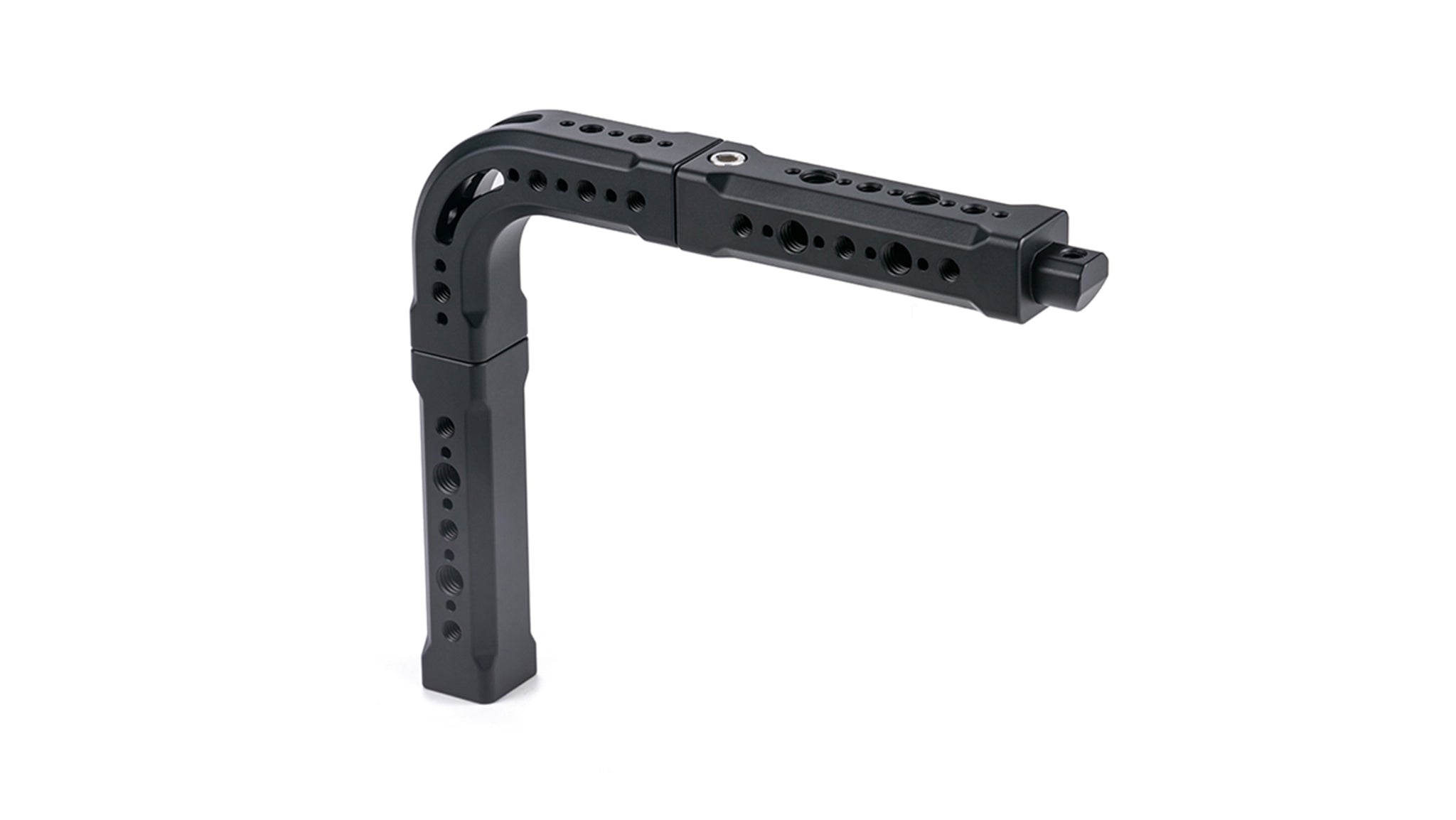

Top Handle Extension

Name: Top Handle Extension
Brand: TILTA Europe
SKU: ESR-T08-THE
Price: 119.00 GBP
Availability: InStock

£119.00

(0)

SKU: ESR-T08-THE

6972835239655

Key Features

[MORE POINTS OF CONTACT] Increases Flexibility for Operating and Handling
[MOUNTING POINTS] Include 1/4"-20 and 3/8”-16 Threads with
[MODULAR DESIGN] Supports Two Lengths for Different Sized Batteries
[COMPATIBLE] with our Top Handle for RED V-RAPTOR
[LIGHTWEIGHT & DURABLE] Aluminum and Steel Design

In stock

Features

Overview

Packing List

Technical Data

Back to Top

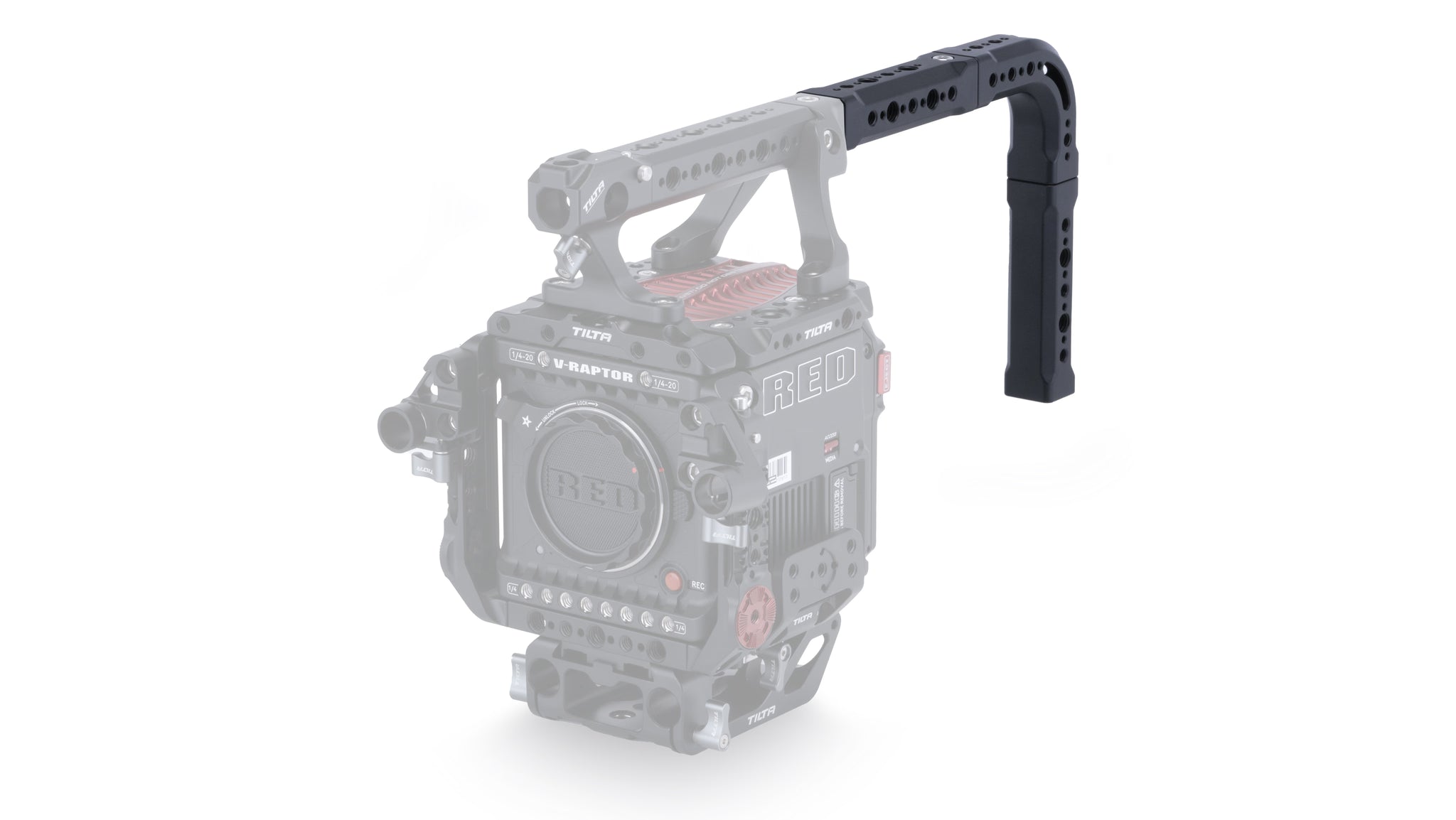

This Extension Accessory for RED V-RAPTOR allows you to extend your Top Handle which offers additional mounting points and increased flexibility when handling.

This Extension includes a removable section that further extends the handle if needed to accommodate larger batteries.

The curved design of this handle extension is a great option for expanding ways in which you can operate the camera particularly at lower angles.

(1) Top Handle Extension for RED V-RAPTOR

Dimensions15.24 x 10.16 x 7.62 cm

Weight0.5 kg

MaterialsAluminum Alloy, Stainless Steel

ColourBlack / White

£119.00

Add to Cart

Buy it Now

Features

LIGHTWEIGHT AND COMPACT

Various configuration possibilities

ERGONOMIC DESIGN FOR CAMERA OPERATING

Black walnut wooden side handle with quick adjustable design.

COMPATIBILITY

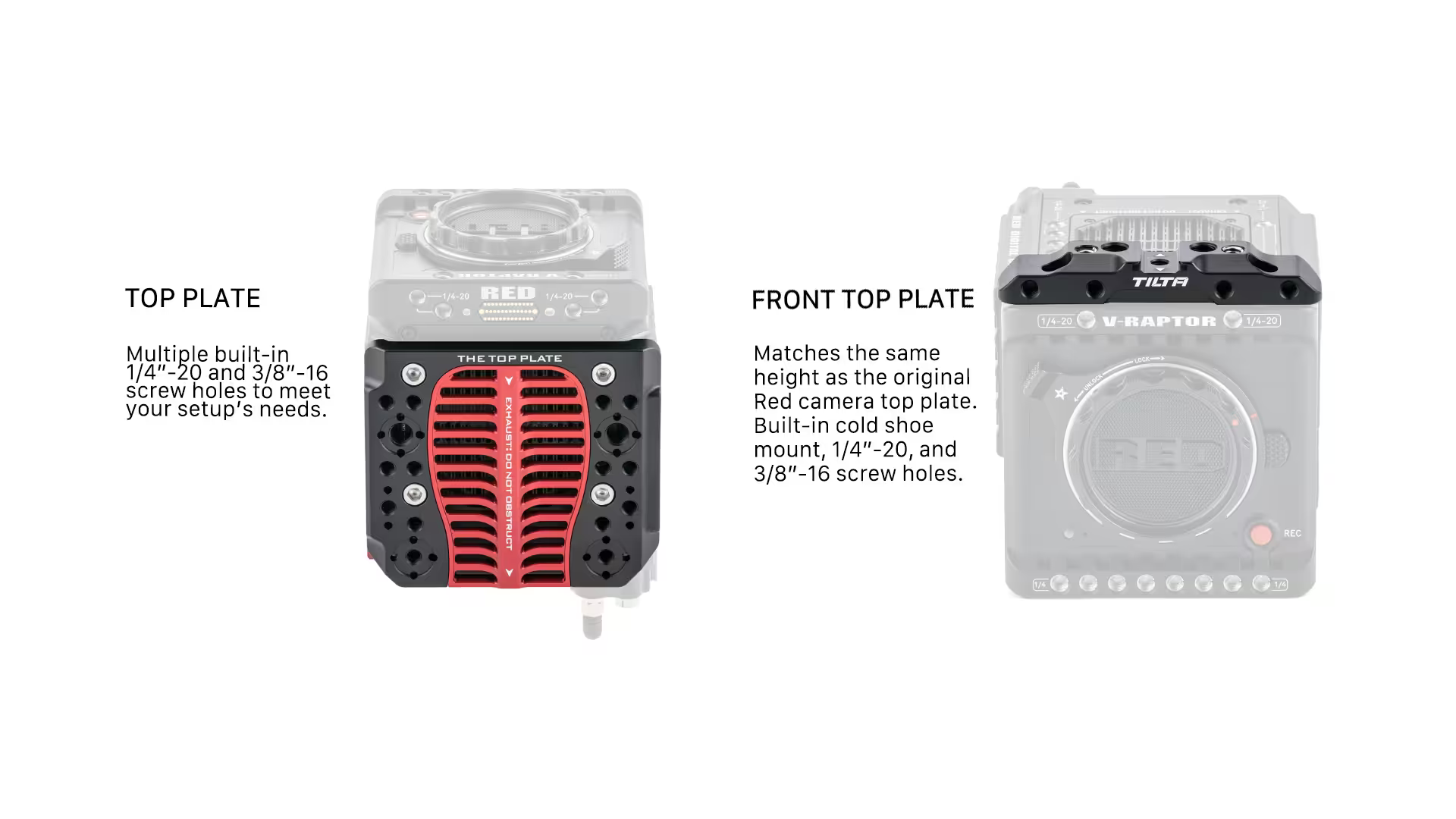

The front top plate is interchangable with the RED monitor interface module.

ADVANCED ANGLED TOP HANDLE EXTENSION

The transformed handle has reserved space for battery access. Provides optimal precision while operating.

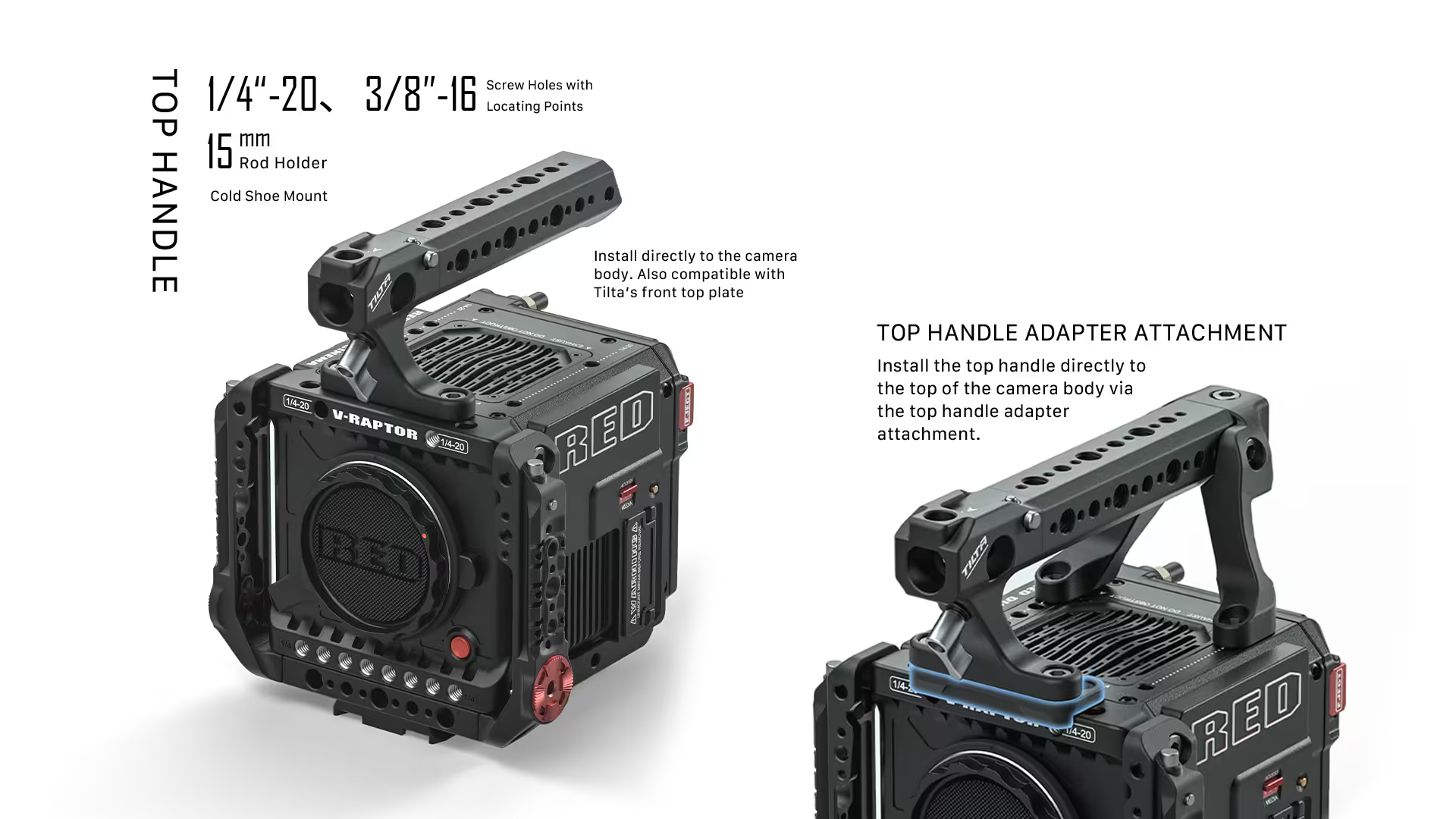

TOP HANDLE 15MM ROD EXTENSION

The top handle comes with built-in 15mm rod holder in the front and the side. Allows you to install a 15mm rod to work with the original monitor mounting adapter.

NEW WOODEN SIDE HANDLE

Custom side handles made from black walnut. Ergonomic and fully adjustable design to fit your operating needs. Easy installation via the NATO rail on the side arms. Quick angle adjustment via the release button.

MULTIPLE POWER OUTPUT PORTS

14.8V 2-PIN LEMO port ×2; 14.8V P-tap port ×1; USB-C port ×1; Contact points power output (Provides power for the I/O module); Aux power output 7.5A total (MAX) ; DC output (11-17.5V)

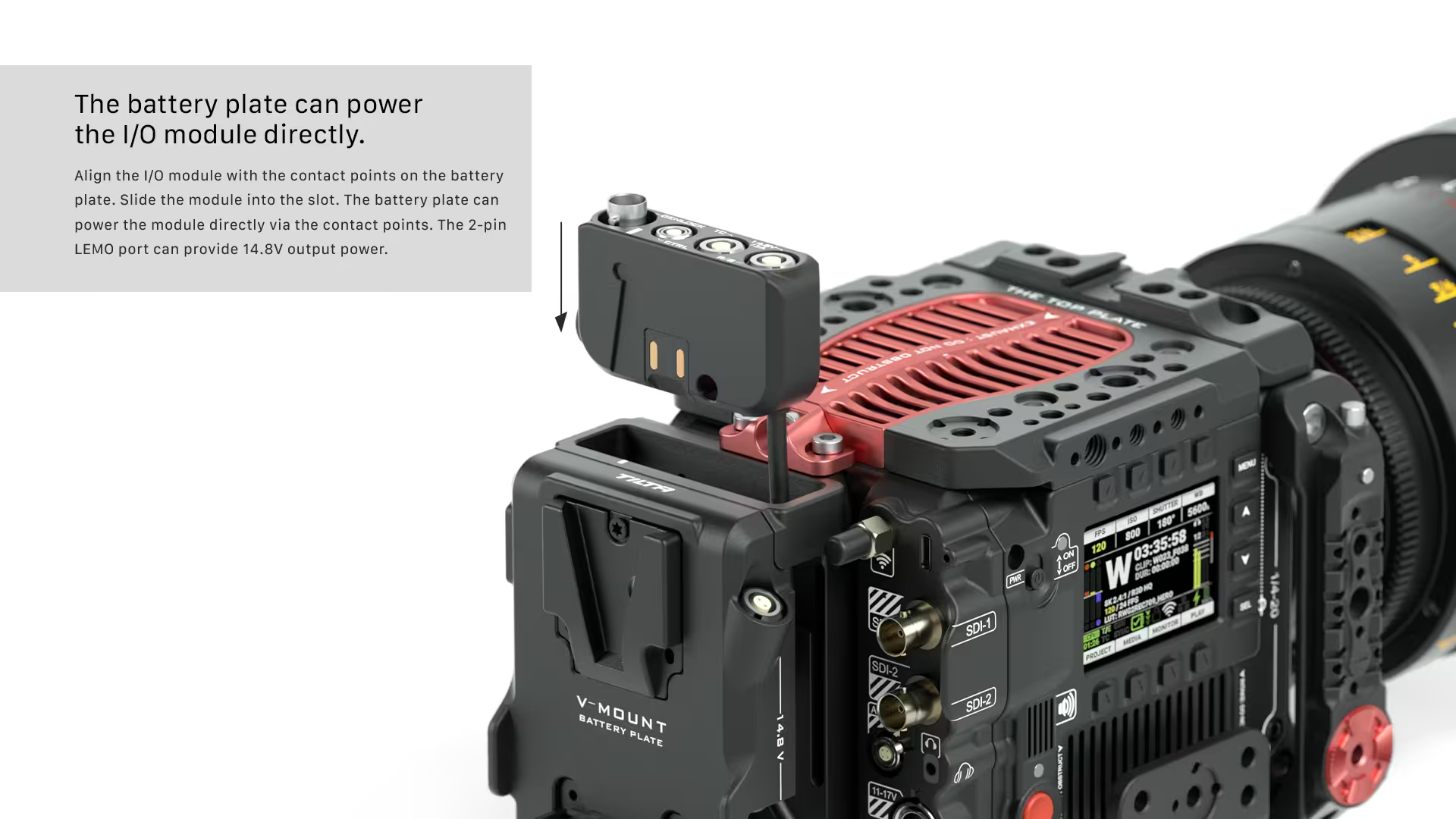

I/O MODULE

Genlock port; CTRL (Purchase Tilta Indie 7 control cable to control camera settings.); Timecode port; R/S (14.8V) (This port can power the lens control motor.) ; Side 2-pin DC input

(When the I/O module is installed to a different part of the camera cage, it can be powered through the 2-pin LEMO port.)

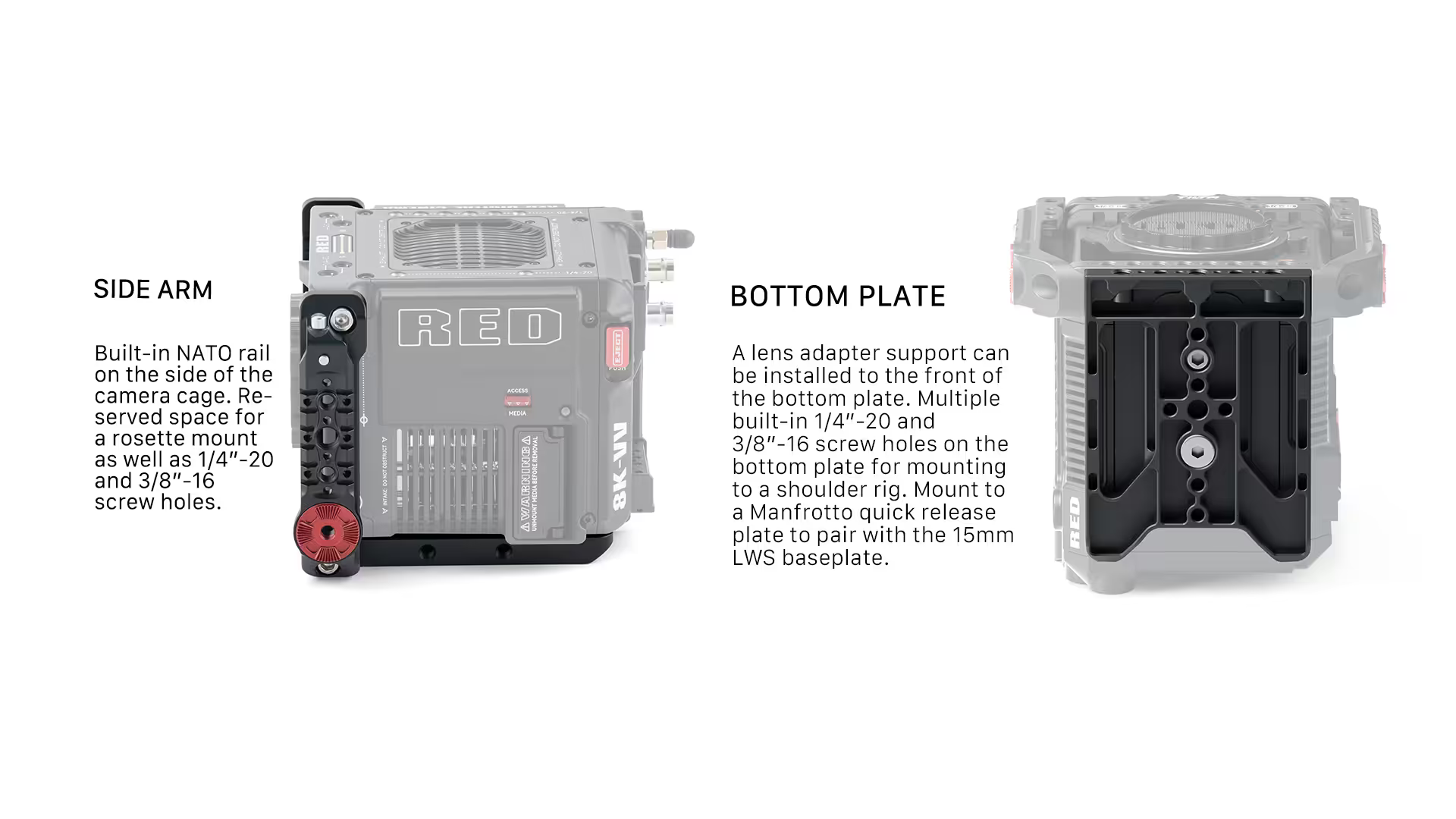

BOTTOM MOUNTING PLATE

Mounts onto the side of the bottom plate on the full camera cage. Supports mounting of accessories such as an articulating arm, I/O module, wireless video transmitter, camera index patches, etc.* The mounting of the bottom mounting plate might affect access to the side of the camera. Please purchase accordingly.

LEFT AND RIGHT SIDE SINGLE ROD HOLDER

The 15mm single rod holder can be installed to the front top plate and the side arm of the full camera cage. Allows you to mount various accessories such as a wireless lens control motor.
