Description
- CUSTOM DESIGNED for the Nikon ZR Camera Body
- MOUNT ACCESSORIES via 3/8"-16 and 1/4"-20 Threads with Locating Points
- EXTENDED POWER for Cameras and Accessories via Higher Capacity V-Mount Batteries
- ADJUSTABLE SWIVEL Allows Users to Adjust the Angle of the Battery Plate up to 180 Degrees
- POWER OUTPUTS Include P-Tap, USB-C and 2-Pin Lemo Connections
Introducing the Camera Cage for Nikon ZR Power Kit

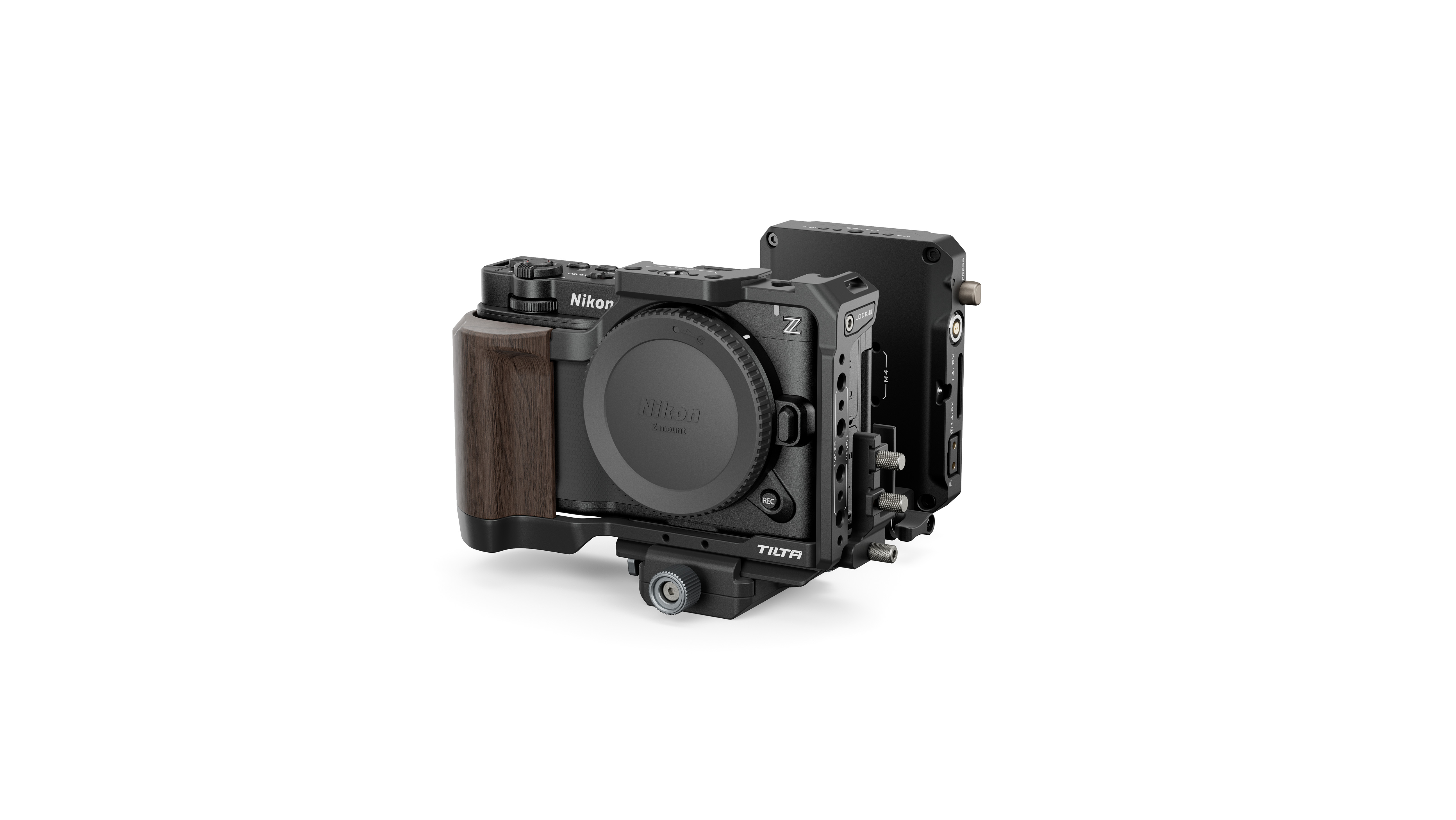

The foundation of this kit is the Full Camera Cage, which provides improved protection for the Nikon ZR camera body while serving as the foundation to build from to support additional accessories. Mounting points include M3 Threads, a Cold Shoe Receiver, 1/4″-20 Threads with Locating Points and a 3/8″-16 to 1/4″-20 Adapter.
This camera cage features two additional points of contact between the cage. A security attachment on the top left side mounts to the camera’s strap slot, while a locating pin on the bottom next to the 1/4″-20 mounting screw helps limit rotation from the camera within the cage.
The modular design allows the full cage to be disassembled into an L-Bracket Style Half Cage when needed. This provides fewer mounting points, but reduces the total weight of the system, ideal for filmmakers using gimbals or moving quickly while shooting.
The included Cable Clamp mounts to the side of the cage and provides additional security for a USB-C and Micro HDMI Cable. The inclusion of thumb screws makes this accessory quick to adjust as needed.
Included in this kit is the Adjustable ARCA Receiver and Mini PD Battery Plate which provides a unique and lightweight option to mount a battery plate without traditional baseplates and 15mm rods.
The Receiver can extend to move the battery plate closer or farther from the camera body while a swivel hinge also allows users to adjust the angle of their battery relative to their camera body.
The battery plate allows users to extend the operating time of their camera and accessories via larger capacity V-Mount batteries and features multiple power output options such as a 60W PD USB-C, a P-Tap, and a 2-Pin Lemo connection.
Unique to this plate are the integrated strap slots which allows users to connect an included security strap to their V-Mount battery which limits the possibility of accidental disconnection. The battery plate also features 1/4”-20 and M4 threads on the top, allowing the unit to be easily mounted in unique ways via additional adapters or articulating arms.
P-Tap/2 Pin Lemo Ports provide 20V/3A
