Tilta Float Handheld Gimbal Support System

Large Item Notice This Item does not qualify for free shipping, and may not be available for purchase in all regions.

UVP: -10%£1,214.10
£1,456.92 inc VAT

SKU: Tilta Float Handheld Gimbal Support System Categories: ,
EAN #N/A

Returns are accepted within 21 days, with some exceptions. Read more →



Tilta Float Handheld Gimbal Support System Overview for RS2
lightweight and wearable vest

Lightweight & wearable vest allows for the gimbal to be brought tight to the body

The quick release vest has a shock absorbing design. Lightweight and compact. The ergonomical weight distribution design gives the operator steady support. Flexible and easy fitting for all body types.

10kg payload

Optimized arm carrying structure and capacity

Durably built with pliable springs provide the forth axis of stabilization. The user has more control while operating.

Features

flexible

Flexible

Easy high and low angle switch. NATO rail connection is built onto both top and bottom ends. Compatible will all gimbals and power supply equipment. Retractable post can function as monopod or extension.

retractable post

Retractable Post

Carbon-fiber made post. Wear proof and lightweight.

wireless control rs2

Wireless control for precise operation

Fully authorized DJI internal communication protocol. Precisely control RS2 through the wireless control receiver module.

universal, use for left or right operation

Universal Design, easily switch from left to right

Quick assembly design. Both the arm and monitor bracket support left and right operation. Compatible with various gimbal brands.

secure operation using back brace

More protection for secure operation

Modular camera and battery can be carried on the back of the vest. Safely operate with the guidance of the safety guiding strap and enhanced anti-collision design.

easy to balance

Easy Balancing + Quick & Precise

Simplified balancing process. Compatible with a wide range of accessories. Adjustable weight depending on the setups. Quick and precise control.

power supply plate options

Continuous Power: Four power supply options

Power through external V-mount, gold mount, DJI battery grip, and TB50 batteries. Tidy, cordless build. Compact and portable.

compact and portable

Compact & Portable

Highly portable design for quick assembly and long distance transportation.

float system packing list
tilta float system parts and packaging

Description

  • [INCREASED STABILITY] Provides More Stability and Control While Operating the Ronin
  • [RONIN CONTROL] Supports Full Control of the RS2 and RS3 Pro
  • [LIGHTWEIGHT] Support Vest Redistributes Weight for More Comfortable Operation over Longer Durations
  • [INCREASED BATTERY] Multiple Power Options Provide Longer Battery Life to the Ronin
  • [COMPATIBILITY] Supports any Gimbal that Connects with 1/4"-20 Threads and can Power via a 2 Pin Lemo

*Free shipping does not apply for this item*

The Tilta Float System works in conjunction with the DJI RS 2 and RS3 Pro to provide a small, compact camera stabilizer system to allow you to accomplish smooth cinematic camera movements with smaller camera setups.

The counterweight-based post provides further stabilization for your setup beyond what the gimbal is already doing to allow for the smoothest possible free flowing camera movement imaginable.

The spring-loaded arm and support vest design puts the weight of the rig onto your torso, allowing for longer operating times before the user gets fatigued.

The included Wireless Thumb Controller allows you to wirelessly control the Ronin as well as a Nucleus M or Nucleus Nano follow focus motor.

This unit is designed to be mounted to the yoke of your Tilta Float via the system’s Monitor Bracket.

The Controller powers via Go Pro 5-8 Batteries and features a USB-C port that can be used for future firmware updates. Please note we do not recommend powering the unit via this port.

The included Lower Back Support and Single Shoulder Strap provides additional weight distribution ensuring comfortable operation over any duration.

Multiple power options provide more flexibly when powering the Ronin. The system can power the gimbal via Gold Mount, V-Mount, TB50, or the Battery Handle itself via optional accessories.

*The Float is compatible with any gimbal under the weight limit that can mount via 1/4″-20 threads and can power via 2 Pin Lemo or an internal battery, however, it can only wirelessly control the RS2 and RS3 Pro*

**The Float does not have power outputs other than the 2 Pin Lemo designed for powering the RS2**

***The Internal Post Cable can handle 14.8V and 3A with maximum ability to handle 6A***

RS3/RS3 Pro: The M Key is NOT able to mimic the function of the gimbal. The M Key on this unit can ONLY change the Mode setting.

It is NOT recommended to use gimbals larger than what could be classified as “handheld” such the Movi Pro.

Even if the total weight is under 10kg, the system will have trouble supporting gimbals physically larger than the DJI Ronin RS Series gimbals.

GSS-T01-V
1£ºTilta Float System Arm(GSS-T01-ARM)*1
2£ºTilta Float System Post(GSS-T01-PST)*1
3£ºPower Supply Base Plate for RS 2(TGA-PBP)With Cable(TCB-DTP-2LE-40)*1
4£ºTilta Float System V Mount Battery Plate(GSS-T01-BPV)*1
5£º2-Pin Lemo to 2-Pin Lemo Cable(20 cm)(TCB-2LE-2LE-20)*1
6: Tilta Float System Support Vest(GSS-T01-SV)*1
7£ºWireless Thumb Controller for RS 2(GSS-T01-WTC)*1
8£ºWireless Control Receiver Module for RS 2(TGA-WCR)*1
9£ºTilta Float System Monitor Bracket(GSS-T01-MB)*1

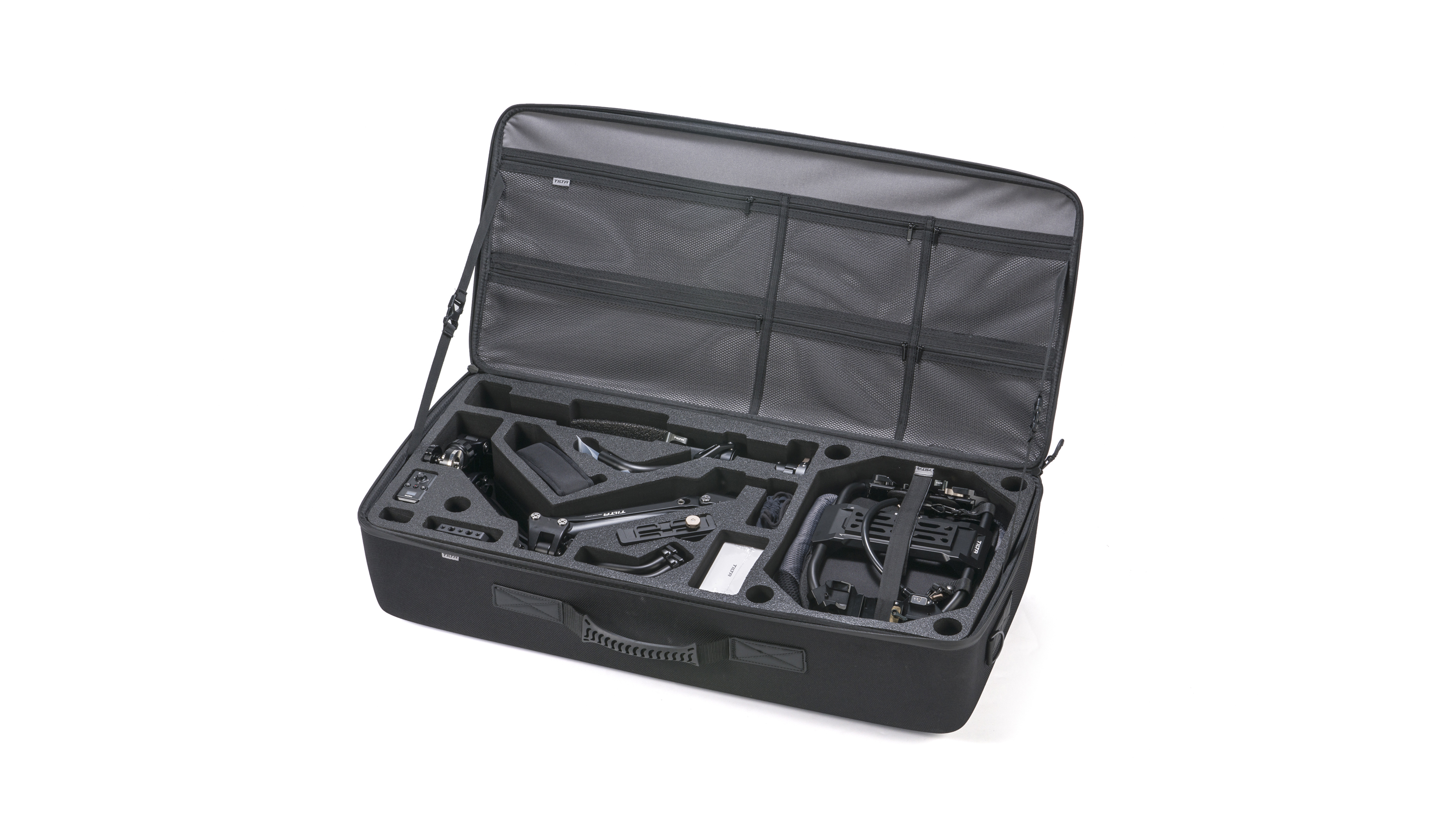

10£ºTilta Float System Carrying Case (GSS-T01-CC)
11: Tiltaing Adjustable Cold Shoe Phone Mounting Bracket – Black(TA-PMB-B)
12£ºTool Kit for Tilta Float System(GSS-T01-TK)*1
13£ºTilta Float System Cross NATO Rail Post Mount(GSS-T01-CPM)*1
14£ºTilta Float System Baby Pin Docking Adapter(GSS-T01-PDA)*1

GSS-T01-AB
1£ºTilta Float System Arm(GSS-T01-ARM)*1
2£ºTilta Float System Post(GSS-T01-PST)*1
3£ºPower Supply Base Plate for RS 2(TGA-PBP)With Cable(TCB-DTP-2LE-40)*1
4£ºTilta Float System Gold Mount Battery Plate(GSS-T01-BPAB)*1
5£º2-Pin Lemo to 2-Pin Lemo Cable(20 cm)(TCB-2LE-2LE-20)*1
6: Tilta Float System Support Vest(GSS-T01-SV)*1
7£ºWireless Thumb Controller for RS 2(GSS-T01-WTC)*1
8£ºWireless Control Receiver Module for RS 2(TGA-WCR)*1
9£ºTilta Float System Monitor Bracket(GSS-T01-MB)*1
10£ºTilta Float System Carrying Case (GSS-T01-CC)
11:Tiltaing Adjustable Cold Shoe Phone Mounting Bracket – Black(TA-PMB-B)
12£ºTool Kit for Tilta Float System(GSS-T01-TK)*1
13£ºTilta Float System Cross NATO Rail Post Mount(GSS-T01-CPM)*1
14£ºTilta Float System Baby Pin Docking Adapter(GSS-T01-PDA)*1

Tilta Float System Specs
Product dimensions: 835x345x210mm
Product weight: 10kg (Net Weight 7.5kg)
Materials: Carbon fiber, aluminum, plastic, and nylon fabric

Tilta Float System Support Vest
Vest Size: 600-1200mm
Extension: Built-in Tilta standard 15mm quick release baseplate.

Tilta Float System Arm
Connector post diameter: 12mm
Maximum payload capacity: 10kg
Up and down movement range: 800mm (±4300)
Weight: 2.27kg

Tilta Float System Post
Material: Carbon fiber and aluminum
Mount: NATO rail
Power input/output: 2-pin LEMO
Maximum Power Input: 14.8V, 6A
Length range: 500-1000mm

Tilta Wireless Thumb Controller for RS2
Cold shoe mount
2.4 GHz wireless module
Remote control range: 50-70m (Dependent on the location, there might be a slight
variance.)

*The Wireless Thumb Controller requires a single GoPro Hero 5-8 Battery to power which is not included*

Power Supply Solutions
1. V-mount battery
2. Gold mount battery
3. DJI TB50 battery
4. RS2 battery grip



Dimensions: 35 x 10 x 18 inches

Weight: 48 lbs

Net Weight: 16.5 lbs

Materials: Aluminum alloy, stainless steel, carbon fiber, plastic, and nylon fabric

Colour: Black

Top Questions


View all questions Ask a question

Customer Reviews

Based on 14 reviews
43%
(6)
36%
(5)
21%
(3)
0%
(0)
0%
(0)
J
Johnny P. (Helsinki, FI)
Worth every penny

Fantastic feel and almost intuitive to use. Very ergonomic.

A
Ana T. (Los Angeles, US)
It's a great invention but it didn't work out

I would have loved to use my Dji gimbal with this, but parts were missing and it was impossible to put together. When I had to return it, I had to pay close to $70 to ship it back since I bought it directly from the company's website and not Amazon. Some little screws and springs were just randomly in the box and I didn't know where those springs came out of. I got a full refund, minus about 30$ so I lost around $100 on this adventure. it was worth it though. I think the idea is amazing and much cheaper than Ariri Trinity system. It made me look into other systems that won't require batteries. Another downside to this was that the battery was not included. So not only were a lot of parts missing, but the batteries were not included and it felt that I would have to gather bits and pieces of parts from all over the place to be able to put this thing together. It would be nice is this Tilta Float came with everything included to put the system together.

T
Tim O. (Makawao, US)
It opens up expanded possibilities

I would appreciate it if the shipping to Hawaii weren't an arm and a leg. There are considerations for foreign shipments. Perhaps a different carrier for Hawaii and Alaska. Also, the support with assembly and balancing is either third party or in Chinese. One would think that there are enough sales to English speaking countries to properly support this product, affording the English speaking buyers the respect that any customer deserves. Its not like producing an English version is difficult for Tilta.

K
Kevin L. (Somerset, US)
Amazing prodcuts

Fantastic. Takes some time to learn. But once you get it you'll be amazed. The advance ring is probably the better overall equipment for most people. But I wanted to try out the float.

K
Ken H.
Excellent with one flaw

This is my first stabilizer. I researched it from the time it came out before I made a decision. It is very well made! It took a bit of experimenting to figure out what side I wanted the arm to be on as I am right handed, I figured that was were it should be but found the inverse worked much better. As for balancing, where the hell do you get a stand? I must be calling it the wrong thing as I can't seem to get any results in a search.
So I tried some various tests to see how this thing reacted. I was very impressed that I could walk up and down a flight of stairs with practically no bounce! I have a Ronin 1, which I still love and an RS2. This is going to save my shoulders!
Now to the flaw: there is a supplied back extension to support the weight on the upper back. The only problem is that it covers an area about the size of one vertebra and puts a LOT of pressure on that resting point. I would suggest increasing the size of this pad and giving it a bit of a curve to conform to the spine. The reason being that the fastening point of the arm creates torque at the center point of the back of the vest, forcing more leverage on the extender. If the back rest were larger, the weight could be distributed over a larger area resulting in less pounds per square inch. I will be making one out of carbon fiber and then of course covering one side with foam.
All that aside, I'm really going to enjoy this thing!
